THE   CHOICE™ PHOTOLUMINESCENT
EXIT SIGN
8.924R-2-F-B - AddLight Photoluminescent Exit Signs tested & evaluated to the UL924 performance standard can be used instead of electrical signs                8.924G-2-F-B - AddLight Photoluminescent Exit Signs tested & evaluated to the UL924 performance standard can be used instead of electrical signs
8.924R-2-F-B                                                 8.924G-2-F-B

   The Environmental Choice with LEED Credits
  • EA Credit #1 - Energy & Atmosphere, optimizing energy performance
  • MR Credit #4 - Materials & Resources, high recycled aluminum content
  • ID Credit #1.1 - Innovation in Design, performance of non-electrical exit signs
  • PVC Free
  • No Radioactive Components
  • Battery Free
  • Circuit Board Free - no heavy metals


    • The Materials Choice
  • Robust metal construction
  • Minimum 60% recycled aluminum content
  • Rust free & rust resistant components
  • Rated non-combustible
  • Non-sparking


    • The Safety Choice
  • Recognized by current building & fire codes
  • Meets all NFPA 101 Life Safety Code requirements
  • 100% fail-safe when used as directed
  • Intrinsically explosion proof
  • Vandal resistant for greater uptime


    • The Value Choice
  • Immediate savings to $200 per sign
  • Pays for itself once installed
  • Save on maintenance costs
  • Save on energy costs
  • Save on testing costs


    • The Attractive Choice
  • Crisp printed aluminum sign face - red or green
  • Anodized aluminum frames
  • Bold & sturdy extruded box frame for wall or ceiling mount
  • Flat wall mount with hidden fasteners
  • ELP - Embossed Low Profile Frames
  • Nearly flat wall mounting
  • Hidden fasteners on most wall surfaces
  • Pleasing satin metal finish
  • Easy installation above the door and at floor level


    • The Replacement Choice - Need a Facelift?
  • Replace broken & expensive electrical exit signs
  • Replace expired & radioactive tritium exit signs
  • Eliminate batteries & lamps
  • Savings & safety start immediately
  • Tough - perfect for schools
  • Vandal & paint resistant
  • Graffiti resistant
  • Warranted for 25 years
  • Expected service life over 50 years
  • Aluminum mounting brackets
  • Stainless steel cable mount available
  • Frame accepts 1-2 sign faces
  • Minimum exposed fasteners for clean look
    		•  AddLight Photoluminescent Exit Signs Consume ZERO Energy!

    AddLight Photoluminescent Exit Signs are Vinyl FREE!

    AddLight Photoluminescent Exit Signs Consume ZERO Energy!

    AddLight Photoluminescent Exit Signs Consume ZERO Energy!

    AddLight Photoluminescent Exit Signs with our NEW Low-Profile Frame
    ELP - Embossed Low Profile

    AddLight Photoluminescent Exit Signs with our NEW Low-Profile Frame
    ELP - Embossed Low Profile

    Replace broken electrical exit signs with AddLight Photoluminescent Exit Signs
    Use Addlight, Prevent This

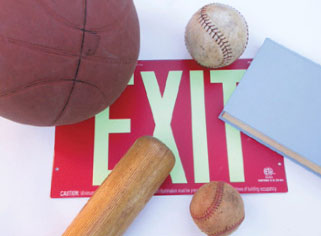

       Perfect for Schools - Tough
  • Special finish
  • Metal construction
  • Resists many types of vandalism
  • Spray paint cleans off easily
  • Graffiti resistant


    • Versatile Mounting Options
  • Sign face may be mounted directly to wall
  • Optional satin aluminum frame and bracket allow side or top mounting
  • Unique stainless steel cable mount for very high mount locations
  • Stainless steel cable, swinging mount, also reduces damage in low mount locations in schools & factories
  • Frame accepts two sign faces; provides same appearance on both sides
  • Minimum exposed fasteners for clean appearance
    		•  AddLight photoluminescent exit signs are durable, reliable & effective. They are effectively vandal resistant with 100% aluminum construction.
    Tough, School Proven Design

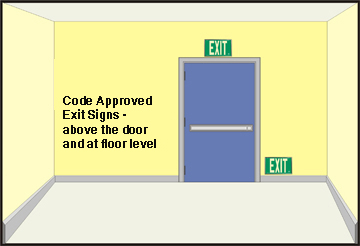

       AddLight photoluminescent exit signs are code compliant in many jurisdictions and can be used above the door & at floor level.
        Installed as Required by Many Jurisdictions     		Sign Construction
  • Solid Aluminum, Plastic Free
  • Graffiti resistant ceramic face coating
  • Nominal 13 5/8 x 8.5 x 0.044 inches
  • With frames, 14 3/4 x 9 inches
  • Listed to UL924 performance standard by ETL
  • Meets NFPA 101 Life Safety, Building & Fire Codes
  • Certified 75 foot visibility after 90 minutes (with 5 footcandle charge for one hour)
  • Remains visible for many hours more than electrical signs
  • Limited warranty for glow of 25 years
  • Expected service life of more than 50 years
  • Optional use glow chevrons furnished
    		•


    Emergency Lighting & Exit Signs are typically the most neglected life safety components in every building. Please follow these links to articles which describe specific and common problems affecting reliability and effectiveness- improper installation and inadequate maintenance- with electrical exit signs.

    HOW GOOD IS YOUR EMERGENCY LIGHTING? Drew Marchetti, Buildings Magazine, Stamats Business Media, November 2001.

    WHERE THERE'S SMOKE... THERE SHOULD HAVE BEEN A SAFETY REVIEW. Lanny Berke. Machine Design, Penton Media, September 2008

    Energy efficient overhead lighting can easily provide 5 ft-candles of illumination for AddLight photoluminescent exit signs. A single fluorescent fixture near the exit door & sign can provide enough lighting to "read a newspaper at arm's length"; considered by many inspectors to be a minimum of 5 ft-candles of illumination.



    AddLight Photoluminescent Exit Signs - 3D Graphic


    Rotate our exit sign graphic and notice the thin profile and clean design for ceiling or wall mounting. The mounting bracket can be installed on either end or on the top of the frame as necessary for your installation. Then view our installation photographs below and our construction drawings at the bottom of the page. Download a Java Add-on to View this 3D Graphic.


    INSTALLATIONS



    90.8924R-2-F-B - AddLight Photoluminescent Exit Signs tested & evaluated to the UL924 performance standard can be used instead of electrical signs
    Wall Mount Bracket & AddLight
    Photoluminescent Exit Sign     		90.8924G-1-F - AddLight Photoluminescent Exit Signs tested & evaluated to the UL924 performance standard can be used instead of electrical signs

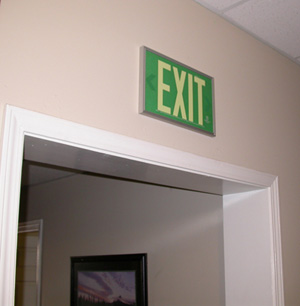

    AddLight Photoluminescent Exit Sign
    Mounted on the Wall

    90.8924R-2-F-B - AddLight Photoluminescent Exit Signs tested & evaluated to the UL924 performance standard can be used instead of electrical signs

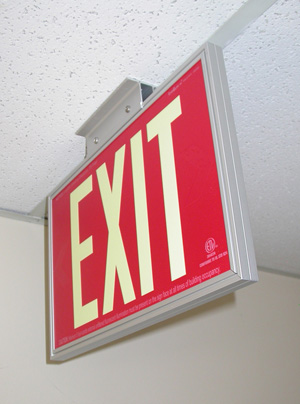

    Ceiling Mounted
    AddLight Photoluminescent Exit Sign


    INFORMATION ABOUT ADDLight PHOTOLUMINESCENT EXIT SIGNS TESTED & EVALUATED TO UL924.
    Sales Flyer & Data Sheet for AddLight Photoluminescent Exit Signs Tested to UL924  Data Sheet for AddLight Photoluminescent Exit Signs

    Installation & Assembly Instructions for AddLight Photoluminescent Exit Signs Tested to UL924  Installation & Assembly Instructions for AddLight Photoluminescent Exit Signs

    3 Part Specs for AddLight Photoluminescent Exit Signs Tested to UL924  3-Part Specifications for AddLight Photoluminescent Exit Signs Evaluated to UL924.                   (MS Word 2003 Format)     (Rich Text Format)     (Word Perfect Format)

    Construction Drawings for AddLight Photoluminescent Exit Signs Tested to UL924  Construction Drawings for AddLight Photoluminescent Exit Signs
                               (PDF)       (DWG)       (DXF)

    BIM Objects for AddLight Photoluminescent Exit Signs Tested to UL924   BIM Objects for AddLight Photoluminescent Exit Signs
      REVIT         (Ceiling Mounted AddLight Exit Signs)   (Wall Mounted AddLight Exit Signs)
      ArchiCAD     (Ceiling & Wall Mounted AddLight Exit Signs)

    INFORMATION ABOUT PHOTOLUMINESCENT EXIT SIGNS - Replace electrical & radioactive exit signs in most jurisdictions.

    1. Recent Model Code Changes for Approved Exit Signs - IBC, IFC, NFPA 101 (2009).

    2. Code Interpretation by the California State Fire Marshal.

    3. OSHA Factsheet - Requirements for Emergency Exit Routes.

    4. OSHA Evacuation Plans & Procedures - Exit Route Demonstration.

    5. US Dept. of Labor, 29 CFR- Maintenance, Safeguards, & Operational Features for Exit Routes.

    6. US Dept. of Defense, Unified Facilities Criteria 3-600-01.

    7. DSIRE - Database of State Incentives for Renewables and Energy Efficiency

    8. How to Buy Energy Efficient Exit Signs, US Department of Energy.

    9. Cost Comparison for Different Types of Exit Signs.

    10. ENERGY STAR Savings Calculator for Different Types of Exit Signs.

    11. Governor of North Carolina Signs Legislation, Senate Bill 1946, Recommending the use of Photoluminescent Exit Signs (instead of energy consuming electrical exit signs) when Permitted by the State Building Code.
